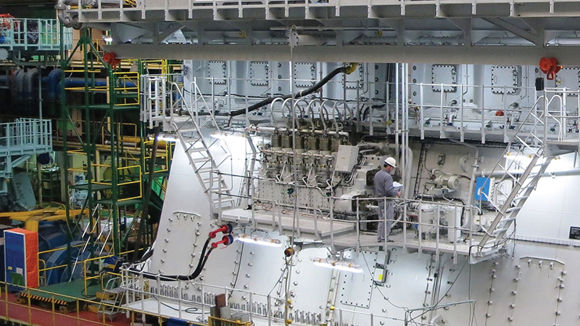

X92-B

The largest and most powerful two-stroke engine in the portfolio has been redesigned to fulfil the latest market requirements.

X92-B will provide the best possible propulsion efficiency for modern large and ultra large container vessels due to the optimal selected cylinder power, shaft speed and stroke to bore ratio.

Available in 6 to 12 cylinder configuration, it covers a power range from 24,420 to 77,400kW at 70 to 80rpm with an improved BSFC.


OPERATIONAL FEATURES

The X92-B engine is equipped with the latest state-of-the-art development of common rail technology, which results in lower fuel consumption across the entire operating range, especially at low and part loads. Intelligent Combustion Control (ICC) system enables further fuel savings by automatic balancing of each cylinder load. Different engine tunings (Standard, Delta, Delta By-Pass and Low Load) are available in order to meet specific customer requirements. The engine is fully compliant with IMO Tier III NOx emission levels when equipped with an SCR catalyst system. The introduction of the EEDI index also puts an emphasis on CO2 emissions and total vessel efficiency. The internal engine efficiency of X92-B and the possibility to apply a Waste Heat Recovery System makes it easy for shipyards to meet these new requirements.

The X92-B includes additional improvements to increase the reliability or to simplify the design like the high pressure system oil for the crosshead bearing or the optimized cylinder liner cooling system. The Data Collection and Monitoring (DCM) system is installed as standard on the engine, allowing the visualisation and the display of engine or vessel data, which can be useful for trouble-shooting and for maintenance activities.

TOTAL COST OF OWNERSHIP

The X92-B engine is designed for high reliability and for long periods of maintenance-free operation. It also allows extended Time Between Overhaul (TBO) as much as 5 years. The service-friendly design will reduce downtime, maintain vessel operation and cut operating costs. Together with Condition Based Maintenance (CBM) and service agreements, the overhaul interval may be even further extended, thus minimising maintenance costs and maximising the revenue-earning capability of the vessel.

DF-READY OPTION

The X92-B engines has been designed to allow a later conversion to a X92DF to use LNG as fuel. The DF-ready engines can be converted to dual-fuel, as no major structural components need to be modified. All parts, which are to be replaced at a later conversion, are either typical wear parts or specific X-DF components and systems. DF-ready version is the recommended solution for LNG-ready ships.

All data provided on this site is for information purposes only, explicitly non-binding and subject to changes without further notice.

Basic Engine Data

TECHNICAL INFORMATION

WinGD X92-B

IMO Tier II/Tier III (SCR)
Cylinder bore
920mm
Piston stroke
3468mm
Speed
70-80rpm
Stroke/bore
3.77
Mean effective pressure at R1
21.0 bar

Rated power, principal dimensions and weights

Output in kw at
80rpm70rpmLength A (mm)Weight (tonnes)
Cyl.R1R2R3R4
638700279003390024420115701120
745150325503955028490131601260
851600372004520023560147501380
958050418505085036630177801630
1064500465005650040700193701790
1170950511506215044770210301960
1277400558006780048840227002140
Output in kw at
80rpm70rpm
Cyl.R1R2R3R4
638700279003390024420
745150325503955028490
851600372004520023560
958050418505085036630
1064500465005650040700
1170950511506215044770
1277400558006780048840
Cyl.Length A (mm)Weight (tonnes)
6115701120
7131601260
8147501380
9177801630
10193701790
11210301960
12227002140
Dimensions in mm
B C D E E*
5550 1900 13150 6050
F1 F2 F3 G
15640 15650 14360 2970

Brake specific fuel consumption (bsfc) in g/kWh

Full load, Rating point R1 R2 R3 R4
BMEP, bar 21.0 15.1 21.0 15.1
BSFC Standard Tuning 163.8 156.8 163.8 156.8
Part load, % of R1 85 70 85 70 65
Tuning variant Standard Standard Delta Delta Low-load
BSFC 160.2 159.8 159.8 158.3 153.6
Full load, Rating point
BMEP, bar
R1 R1 R3 R4
21.0 15.1 21.0 15.1
BSFC
Standard Tuning
R1 R1 R3 R4
163.8 156.8 163.8 156.8
Part load, % of R1
Tuning variant
85 70 85 70 65
Standard Standard Delta Delta Low-load
BSFC
85 70 85 70 65
160.2 159.8 159.8 158.3 153.6
